September 2026: One Slide, Many Microscopes

Why are standard 1 × 3 slides so widely used in microscopy?

A microscope can be incredibly specialized, but your sample holder doesn’t always have to be. One of the most convenient standards in light microscopy is the familiar 1 × 3 inch microscope slide. Because this format is so widely adopted, many different microscopes and slide holders are designed to accommodate it—making it easy to move samples between imaging platforms.

Not all slide holders are the same

Even when two microscopes accept standard 1 × 3 slides, their holders may look very different. Some systems use spring-loaded clips, while others use removable frames, magnetic inserts, or holders designed to accommodate multiple slides at once. Some holders are optimized for coverslipped samples, while others are designed for specialized applications such as live-cell imaging or slide scanning.

At the SCOPE, you'll encounter a variety of slide-holder designs across our imaging platforms. The holder may change from microscope to microscope, but the standard slide format provides a common starting point.

Why standardization matters

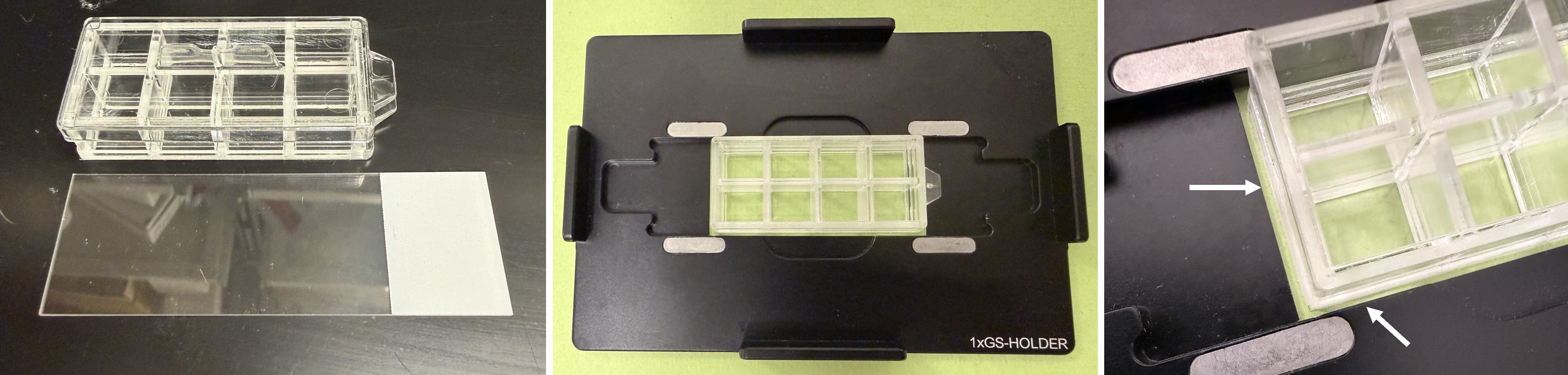

Some of our instruments have stages which are adjustable to account for shorter or longer sample holders - but not all. Below is an example of the Lab-Tek II Chamberd #1.5 German Coverglass System (Lab-Tek 155409) which is shorter than a standard 1x3 and thefore is not compatible with the shown sample holder. This chamber slide has a #1.5 coverslip glass bottom and compatible with immersion objectives on an inverted microscope for high resolution imaging on a system that has an adjustable stage insert. But this sample holder will fall through this stage insert that is designed specifically for 1 x 3 inch slides.

The takeaway

Always check that your slides, chamber slides, multiwell plates and dishes are is compatible with the available stage inserts on the microscope you plan to use.

Have a question about whether your specific slides or plates will work on a particular SCOPE microscope? Ask us! We’re happy to help you figure out the right holder—and the right microscope—for your sample.
